Nodes are combined from outside hierarchy in component diagram

0 votes

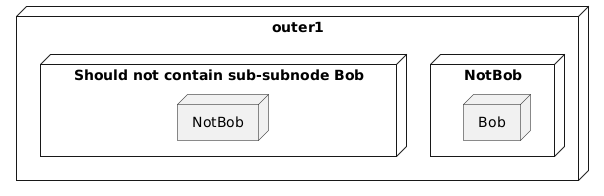

The diagram produced by this is not correct:

@startuml

node "outer1" {
    node "Should not contain sub-subnode Bob" {
        node "NotBob" {
        }
    }

    node "NotBob" {
        node "Bob" {
        }
    }
}

@enduml


I expect it's supposed to look like the diagram produced by this (but with NotBob still being named "NotBob"):

@startuml

node "outer1" {
    node "Should not contain sub-subnode Bob" {
        node "NotBob" {
        }
    }

    node "NotSam" {
        node "Bob" {
        }
    }
}

@enduml


asked Feb 28 in bug by rcmaniac25 (150 points)

1 Answer

0 votes

Best answer

The main issue is that PlantUML does not define any namespace.

Even if "NotBob" is defined twice, from a PlantUML point-of-view, there are only one "NotBob".

This is really a initial design decision which is not easy to change now (because it may impact existing diagrams).

However, a workaround is possible by renaming nodes:

@startuml
node "outer1" {
    node "Should not contain sub-subnode Bob" {
        node "NotBob" as NotBob1 {
        }
    }

    node "NotBob" {
        node "Bob" {
        }
    }
}
@enduml

Is it an acceptable solution for you ?

answered Feb 28 by plantuml (125,210 points)
selected Feb 28 by rcmaniac25
Ah, yes. That works. Thanks for the quick response.
